AUTOSAR IAM requirements
Requirement: Limit Adaptive Application access to the Adaptive Platform Foundation and Services. RS_IAM_00001
  |
Description: An Adaptive Platform Instance shall provide means to actively restrict access of an Adaptive Application to those interfaces and resources of the Adaptive Platform Foundation and Services that the Adaptive Application was originally designed to use. Rationale: Privilege Escalation in case of an attack shall be prevented. Integrators shall be enabled to retrace and control intended tasks of Applications. Use Case: Designer of App declares intended usage of App. Integrator reviews set of requested actions and accepts by assigning GRANT elements to requested intents. Attacker controls App during runtime. Attacker gains no more permissions than App’s initial permissions. |
Description: Access control to interfaces of the Adaptive Platform Foundation and Services shall be enforced by PEP(s) located in (a) the object’s process, (b) the operating system, and/or (c) a process of the Adaptive Platform Foundation. A PEP that runs in the context of the subject Adaptive Application must not be used for enforcement of access control on requests by the subject itself. Rationale: Adaptive Applications are considered to potentially being compromised thus their access shall be restricted by IAM. An Adaptive Application shall not be able to control policy decisions restricting their own requests. The PEP that restricts the requesting Adaptive Application shall be implemented and executed using a separate process not under control of the requesting Adaptive Application. IPC and/or network communication must separate the subject Adaptive Application from the PEP. Use Case: Application requests a method on Service Interface. IAM (located in, e.g., process of Adaptive Platform Foundation or process of the service provider) identifies app and enforces access restrictions. Due to process separation, application cannot spoof its identity or manipulate policy enforcement. |
Requirement: Circumvention of AUTOSAR Policy Enforcement by Applications shall be prevented. RS_IAM_00004
|
Description: Adaptive Platform shall prevent Applications from circumventing AUTOSAR policy enforcement by using other APIs than the AUTOSAR defined APIs Rationale: The runtime environment of the Adaptive Platform Foundation shall ensure that an Adaptive Application may not circumvent PEPs by selecting alternative interfaces not under access control. Use Case: Intents for access on Service Interface SIf provided by Service Instance SInst are not assigned to Application A. Communication Management exposes API to Adaptive Applications and forwards requests to local instances via IPC. A tries to open communication channel to SInst directly (implementation specific). Access control of runtime environment prevents direct access. |
Requirement: Adaptive Platform Foundation shall enforce that only Applications that are configured accordingly are able to gain information about the permissions of other applications RS_IAM_00005
|
Description: The Adaptive Platform Foundation must prevent applications from gaining information about the permissions of other applications unless explicitly configured to be allowed to access this information, i.e. for implementing a PDP in this specific Application. Rationale: Information about the overall-system that might help attackers to analyze the system shall not be exposed by IAM. Use Case: Application A implements PDP and provides according interface to PEPs. During a request A gains access on processed manifests of Adaptive Platform Foundation in order to provide the access control decision. Malicious Application B requests access on processed manifests. Since the application was not registered as PDP access on manifests is denied. |
Description: Access control policies shall be available to the PDP. Policies are either modelled in implementation-specific ways or even represented by code. Policies are not part of the AUTOSAR meta-model. Rationale: The PDP shall provide actual decisions for access control. Those decisions are based on Application’s Intents and Policies, so both shall be available to PDP. Use Case: App requests access on resource. PEP identifies App and forwards request to PDP. PDP has to return binary decision, if identified App brings the required intents that fullfill the policy. |
Description: The Adaptive Platform Foundation shall provide access control decisions based on intents that are stored in the corresponding manifests and policies specific to Functional Cluster. Rationale: Policies used by PDP implemented in Adaptive Platform Foundation are well-defined by AUTOSAR. Use Case: Application A requests access on public interface of Functional Cluster (FC). The manifest of Application A defines its intents. PEP forwards description of request to PDP via inter-functional-cluster interface. Policies used by PDP are predefined by AUTOSAR. The representation of policies is implementation-specific and may even be hard-coded. PDP checks processed manifests for intents of Application A. PDP returns access control decision to PEP |
Requirement: Access shall be denied by the PEP if the corresponding PDP is not available RS_IAM_00008
|
Description: Access shall be denied by the PEP if the corresponding PDP is not available. Applications that depend on access control during startup have to be covered by IAM. Therefore IAM should be available as soon as possible. Rationale: Attackers shall not gain access on resources by DoS-attacks on the PDP. Use Case: Attacker requests access on resource. During the request the attacker exhausts RAM which leads to a time-out of the communication between PEP and PDP. The PEP blocks access on resource. |
Description: The adaptive Adaptive Platform Foundation shall provide an interface to Adaptive Application to facilitate access control decisions based on access control policies and intents that are stored in the corresponding manifests. Adaptive Applications implementing a PDP are used for OEM-specific IAM. This interface is used at runtime during a operation restricted by access control. The specific PEP calls an OEM-specific PDP in order to block or allow a current operation usage. Rationale: Policies and Intents are well-defined by AUTOSAR. OEM-IAM enables the adaptive integration of OEM-specific access control. Use Case: Access on Service Interface I depends on the vehicle state. This vehicle state is gathered by App A via Communication Management. App A provides Policy Decision based on vehicle state. |
Requirement: Adaptive applications shall only be able to use AUTOSAR Resources when authorized RS_IAM_00010
|
Description: The Adaptive Platform Foundation must ensure that adaptive applications shall only be able to use an AUTOSAR Resource if an existing policy authorizes them to do so. Rationale: Fine grained modelling of types of access on resources shall be enabled. Use Case: App A uses a method derivateKey(sourceKey, targetkey). App A is defined as user of sourceKey and owner of targetKey. This prevents App A from writing to sourceKey. |
Description: IAM should support policy enforcement by multiple PEPs for one single request by an adaptive application Rationale: If multiple PEPs enforce a policy, all PEPs have to be compromised or circumvented for a successful attack. Use Case: If access control cannot be enforced at the object’s ECUs (e.g., because it is a legacy ECU or because its PEP has been compromised), an uncompromised PEP on the subject’s ECU can prevent unauthorized access. If access control cannot be enforced at the subject’s ECUs (e.g., because it is a legacy ECU or because its PEP has been compromised), an uncompromised PEP at the object’s ECU can prevent unauthorized access. |
Description: An Adaptive Application ID shall be unique regarding the local machine. Rationale: Adaptive Applications shall be linked to and held responsible for their actions. Use Case: The IAM framework uses the application ID of Adaptive Applications to verify requests and grant access to certain AUTOSAR Resources based on the defined polices. |
Requirement: The adaptive application ID shall be stored and handled tamper-proof throughout its lifecycle RS_IAM_00017
|
Description: An Adaptive Application ID shall be unique regarding the local machine. Adaptive Applications shall be linked to and held responsible for their actions. Rationale: The IAM framework uses the application ID of Adaptive Applications to verify requests and grant access to certain AUTOSAR Resources based on the defined polices. Use Case: Application Designer defined Intents in manifest. The manifest is cryptographically signed. During deployment the manifest is authenticated and checked for integrity. |
Description: The set of intents of an Adaptive Application shall be provided in the corresponding manifest. Rationale: Intents defined for an Adaptive Application shall be determined by the corresponding manifest. If an Adaptive Application is compromised, we need the manifest with the intents to actually enforce the restrictions implied by the intents. We cannot solely rely on the correct behavior of each Adaptive Application. Adaptive Platform Foundation shall not provide any interface that allows applications to change its intents defined in the manifest during runtime. Use Case: The Application Designer defines the actions the Application will request. The Integrator checks plausibility. The Integrator does not need to define permissions. |
Requirement: Intents of an Adaptive Application shall be authentically linked to the manifest RS_IAM_0019
|
Description: The set of intents of an Adaptive Application shall be authentically linked to the Adaptive Application in the corresponding manifest. Rationale: An Adaptive Application is provided with a set of intents. It shall not be possible to extend or restrict this set except by signed updates. The Adaptive Application should always possess the same intents as defined by signed manifests. Use Case: Application designer cryptographically signes the corresponding manifest. The manifest is deployed.
|
Requirement: Adaptive Platform Foundation must allow to specify a superset manifest file of intents RS_IAM_0020
|
Description: Adaptive Platform Foundation shall allow to specify a superset manifest file of intents Rationale: An Adaptive Platform Foundation must provide a collection of all its current manifests in one single superset manifest for exchange with a second Adaptive Platform Foundation. The second Adaptive Platform Foundation may want to confirm an intent of the first Adaptive Platform. |

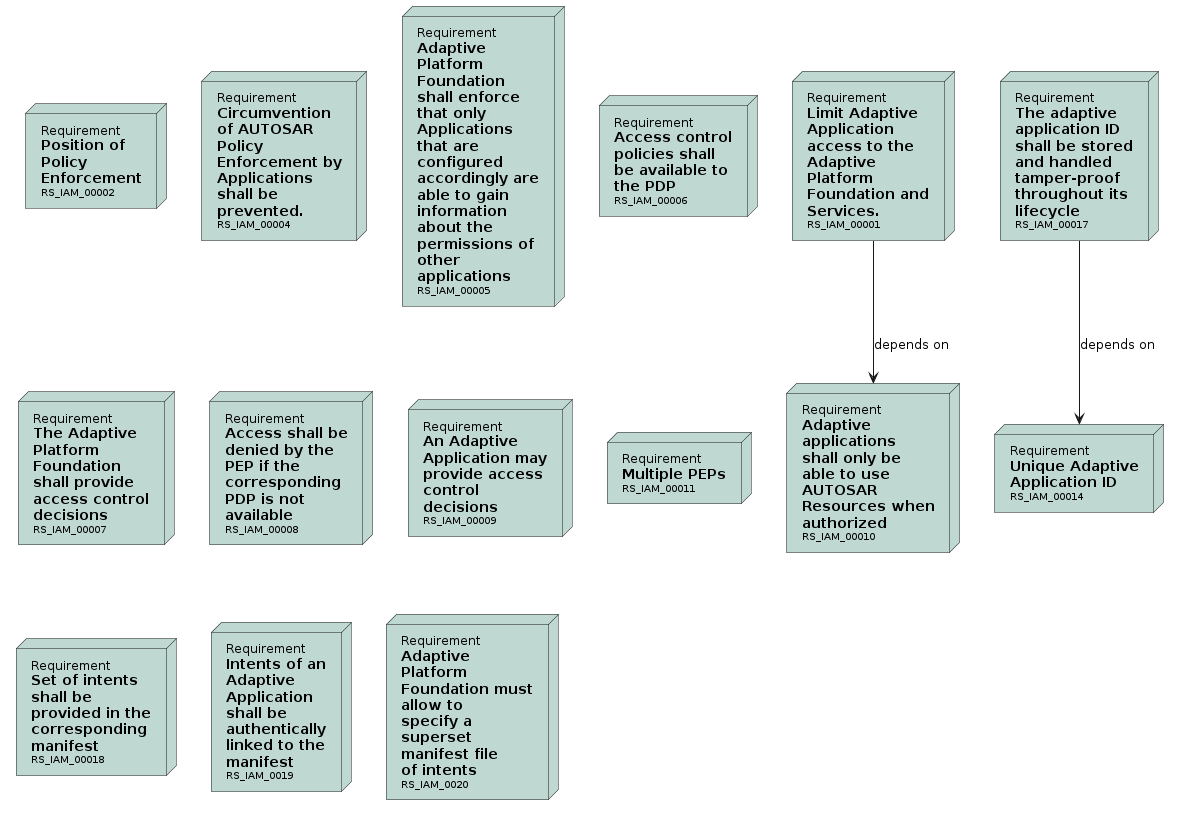

Traceability
ID |
Title |
Status |
Type |
Outgoing |
Tags |
|---|---|---|---|---|---|
Limit Adaptive Application access to the Adaptive Platform Foundation and Services. |
req |
autosar; autosar_iam |
|||
Position of Policy Enforcement |
req |
autosar; autosar_iam |
|||
Circumvention of AUTOSAR Policy Enforcement by Applications shall be prevented. |
req |
autosar; autosar_iam |
|||
Adaptive Platform Foundation shall enforce that only Applications that are configured accordingly are able to gain information about the permissions of other applications |
req |
autosar; autosar_iam |
|||
Access control policies shall be available to the PDP |
req |
autosar; autosar_iam |
|||
The Adaptive Platform Foundation shall provide access control decisions |
req |
autosar; autosar_iam |
|||
Access shall be denied by the PEP if the corresponding PDP is not available |
req |
autosar; autosar_iam |
|||
An Adaptive Application may provide access control decisions |
req |
autosar; autosar_iam |
|||
Adaptive applications shall only be able to use AUTOSAR Resources when authorized |
req |
autosar; autosar_iam |
|||
Multiple PEPs |
req |
autosar; autosar_iam |
|||
Unique Adaptive Application ID |
req |
autosar; autosar_iam |
|||
The adaptive application ID shall be stored and handled tamper-proof throughout its lifecycle |
req |
autosar; autosar_iam |
|||
Set of intents shall be provided in the corresponding manifest |
req |
autosar; autosar_iam |
|||
Intents of an Adaptive Application shall be authentically linked to the manifest |
req |
autosar; autosar_iam |
|||
Adaptive Platform Foundation must allow to specify a superset manifest file of intents |
req |
autosar; autosar_iam |
