AUTOSAR Requirements on Cryptography
Note
Original document is available here: https://www.autosar.org/fileadmin/standards/adaptive/22-11/AUTOSAR_RS_Cryptography.pdf
Description There shall be no interfaces for the users to directly extract symmetric key values. Keys shall be addressed via identifiers by the users, preventing the key values disclosure Rationale If symmetric key values are available in the application at runtime it increases the risk of key compromise. If symmetric key values are stored in the application, centralized key management (e.g. renewal) is hard. Use Case Keys are stored in HSMs and never exposed in plain text. |
Description There shall be no interfaces for the users to directly extract asymmetric private key values. Keys shall be addressed via identifiers by the users, preventing the key values disclosure. Rationale If asymmetric private key values are available in the application at runtime it increases the risk of key compromise. If asymmetric private key values are stored in the application, centralized key management (e.g. renewal) is hard. Use Case Keys are stored in HSMs and never exposed in plain text. |
Requirement: The Crypto Stack shall support management of non-persistent session/ephemeral keys during their lifetime RS_CRYPTO_02003
  |
Description Some cryptographic keys are only used for a single message or communication session. These keys are referred to as “session keys” (usually for short-term symmetric keys) or “ephemeral keys” (for ephemeral public/private keys in asymmetric key-agreement protocols). The Crypto Stack shall support secure handling of session/ephemeral keys during their lifetime. Rationale The session/ephemeral keys are required for secure implementation of multiple cryptographic protocols. Session/ephemeral keys should not occupy persistent slots due to their transient nature. |
Requirement: The Crypto Stack shall support secure storage of cryptographic artifacts RS_CRYPTO_02004
|
Description The Crypto Stack shall support secure storage of cryptographic artifacts, including but not limited to the following items:
Correspondent protection measures should be applied to each artifact according to its type: confidentiality, integrity, authenticity. Rationale Basic functionality |
Requirement: The Crypto Stack shall support unique identification of cryptographic objects RS_CRYPTO_02005
|
Description The Crypto Stack shall assign and keep a unique identifier to any produced cryptographic artifact that can be saved or exported. Rationale At least the unique identification of cryptographic objects is required for definition of dependencies between different objects. Also the unique identifiers can be used for general searching of concrete instances and prevention of duplication. |
Requirement: The Crypto Stack shall support a version control mechanism and distinguish “versions” and “origin sources” of cryptographic objects RS_CRYPTO_02006
|
Description The Crypto Stack shall apply a version control mechanism during saving of any cryptographic object. Also it shall provide interfaces for observing version information of any saveable or exportable cryptographic object. At least this information shall include “version number” and “origin source”. The information about an object’s version should stay actual after provisioning of the object to different ECUs, where it may be kept together with objects obtained from other sources. But a host/ECU that produced an object can ensure uniqueness and sequential order of the “version number” only in its own scope. Therefore additional attribute “origin source” is required and scope of its uniqueness should be global. Note: A few logically related objects of different types and generated together (like private and public keys of a single key-pair) must have common version number in order to simplify their versions identification. Note: Combination of the global uniqueness of the “origin source” and the local uniqueness of the “version number” (in scope of the source) together means that the version information uniquely identifies the object of specific type. It means that the version information together with the object type uniquely identify each cryptographic object saved in an ECU Key Storage Rationale The Crypto Stack should prevent the “repetition attacks”, when an attacker tries to import/inject again some outdated/compromised and already revoked/substituted object. Use Case A key slot owner application may use the version information of an owned object in it’s business logic. |
Requirement: The Crypto Stack shall provide means for secure handling of “secret seeds" RS_CRYPTO_02007
|
Description The Crypto stack shall provide interfaces for saving, loading, importing and exporting of secret seeds. Rationale The “secret seed” can represent some key material that cannot be directly loaded to a key input of some transformation, but it is used for derivation of concrete “slave” keys. Also the secret seed can be used for loading to a “non-key” input (like salt / nonce / initialization vector) of some cryptographic transformation, but specific application can need to keep it in secret too. For such secret objects the Crypto Stack shall support protection measures similar to the keys. Disclosure of the secret seeds can lead to compromising of whole crypto protocol. |
Requirement: The Crypto Stack shall support restrictions of the allowed usage scope for keys and “secret seeds RS_CRYPTO_02008
|
Description The Crypto Stack shall keep the usage restriction information together with correspondent key or secret seed object and use this information every time, when an application tries to load the object to specific transformation context. The allowed usage scope should specify a list of cryptographic transformation types that can be executed using this key or seed object. Rationale The restriction of allowed usage of keys/seeds on the platform level prevents their inappropriate usage by untrusted or compromised applications. In such way, simple “cryptography restriction services” (like “encrypt only”, “decrypt only”, “verify only”, etc.) can be provided without implementation of dedicated services, but just via granting restricted usage access to correspondent keys. |
Requirement: The Crypto stack shall support separation of applications” access rights for each cryptographic object slot RS_CRYPTO_02009
|
Description Adaptive applications should have exclusive access to cryptogaphic object slots. Applications can execute saving and erasing of key slot content. The slot type ”application” allows only the configured application to use the slot contents. If the slot type is ”machine”, the configured application acts only as ”key-manager”, while stack services will be allowed to use the slot content (e.g. for SecOC, TLS). Rationale If two or more applications have the right to update some key slot, then each of them cannot trust to the key slot content, because potentially the content can be updated by a compromised application. Use Case Some Key Management application can be in charge of updating “machine” type platform keys. |
Requirement: The Crypto Stack shall provide interfaces to generate cryptographic keys for all supported primitives RS_CRYPTO_02101
|
Description The Crypto Stack shall support creating cryptographic keys without getting access to the plain key material. Rationale Key confidentiality |
Requirement: The Crypto Stack shall prevent keys from being used in incompatible or insecure ways RS_CRYPTO_02102
|
Description The Crypto Stack should detect and prevent use of keys with incompatible algorithms. Keys managed by the Crypto Stack shall be associated with information to detect and prevent use with conflicting or privileged operations Use Case Protect against unauthorized or incompatible operations that jeapardize confidentiality and integrity of key material (information leakage, key conjuring, API logic attacks). |
Requirement: The Crypto Stack shall support primitives to derive cryptographic key material from a base key material RS_CRYPTO_02103
|
Description The Crypto Stack shall support deriving cryptographic keys using a well-defined algorithm from a base key without getting access to the plain key material. Rationale Generating multiple well-defined symmetric keys from a base key |
Requirement: The Crypto Stack shall support a primitive to exchange cryptographic keys with another entity RS_CRYPTO_02104
|
Description The Crypto Stack shall support exchanging cryptographic keys without getting access to the plain key material. Rationale Establish common secret Use Case Establish TLS session keys |
Requirement: Symmetric keys and asymmetric private keys shall be imported and exported in a secure format. RS_CRYPTO_02105
|
Description The crypto stack shall provide interfaces for import and export of symmetric keys and asymmetric private keys in a secure format. Rationale Support secure distribution of keys from a backend system and/or migration or backup of keys between systems. Use Case Wrapping / unwrapping keys without exposing the key values. |
Requirement: The Crypto Stack shall provide interfaces for secure processing of passwords RS_CRYPTO_02106
|
Description The Crypto Stack shall support password based key derivation and secure password hashing. Passwords should be processed in a manner preventing their disclosure. Rationale Passwords are the simplest and widely used method for human users authentication. |
Requirement: The Crypto Stack shall support the algorithm specification in any key generation or derivation request RS_CRYPTO_02107
|
Description Interfaces of the Crypto Stack shall support a possibility to provide a full or basic specification of the target cryptographic algorithm for any key generation (symmetric and asymmetric primitives) or key derivation (symmetric primitives only) requests. Rationale Inappropriate usage of a key (including a session key) can lead to leakage of confidential information or other type of compromising. |
Requirement: The Crypto Stack shall provide interfaces for management and usage of algorithm-specific domain parameters RS_CRYPTO_02108
|
Description Interfaces of the Crypto Stack shall support a possibility to share some common domain parameters for configuration of different primitive’s instances. A single set of domain parameters can be used with different key values. In most cases domain parameters are public configuration attribute of an algorithm, but Crypto Stack API should support the confidential storage of domain parameters too. Rationale Most of modern asymmetric cryptographic algorithms use domain parameters, also some symmetric algorithms expects specific configuration parameters. The set of additional parameters required by some algorithm depends from the algorithm only and cannot be predicted in the general primitive’s interface. |
Requirement: The Crypto Stack shall support interfaces for a unified Machine-wide storage and retrieval of different crypto objects RS_CRYPTO_02109
|
Description A wide range of hardware (e.g. HSM/TPM/SHE based) and/or software based (e.g. encrypted files) can be supported for secure storage and retrieval of different crypto objects (e.g. keys, certificates, digests, etc.). Therefore, a unified Machine-wide access to all these different storage providers abstracts physical details about storage handling and reduces complexity of cooperative usage of different crypto objects by applications. Rationale A few trusted applications can have a need to use some keys (or other crypto objects) cooperatively while applications’ access rights to the crypto object slots needs to be controlled. A logically centralized crypto object storage handling can facilitate these scenarios conveniently.. |
Requirement: The Crypto Stack shall support prototyping of application-exclusive key slot resources RS_CRYPTO_02110
|
Description The Crypto Stack shall support allocation of key slots during deployment of an application owning correspondent key slots. Access rights and content restrictions of the new key slots should be defined according to the application manifest at the allocation time. Rationale Key slot content restrictions and access rights required by the slots owning application depend on the application design and therefore they should be supplied as a part of application deployment package. |
Requirement: The Crypto Stack shall provide applications a possibility to define usage restrictions of any new generated or derived key RS_CRYPTO_02111
|
Description Interfaces of the Crypto Stack shall support the possibility to define the allowed usage restrictions of any new generated or derived key. Rationale The usage restrictions of a session key can be defined only by the application itself. Also the key slot prototype can miss or have only partial specification of the content restriction, in such way providing some flexibility to the application. |
Requirement: The Crypto Stack shall execute export/import of a key value together with its meta information RS_CRYPTO_02112
|
Description The Crypto Stack shall execute export/import of a key object together with its whole meta information, which should include:
These information must be part of integrity control of the exported/imported key object and optionally can be encrypted. Rationale The whole key’s meta information is required for its correct application. |
Requirement: The Crypto Stack interfaces shall support control of the exportability property of a key object RS_CRYPTO_02113
|
Description Owner application executing generation or importing of a cryptographic object shall have possibility to restrict the exportability property of the generated/imported object. Rationale Unauthorized export of a key (even in encrypted form) can compromise the system. |
Requirement: The Crypto Stack shall enforce assigning required domain parameters to a key in its generation or derivation procedure RS_CRYPTO_02115
|
Description If some cryptographic algorithm requires specification of domain parameters then key generation or key derivation procedures producing key for this algorithm shall enforce direct specification of the domain parameters for the target key. Changing of the domain parameters assigned to an existing key should be impossible. The Crypto Stack implementation may provide some well-known domain parameters specified in some standards via their standardized names. Rationale For some asymmetric algorithms specification of a key is possible only in context of concrete domain parameters. Usage of a single (symmetric or asymmetric) key together with different domain parameters of its algorithm can lead to security risks. |
Requirement: The Crypto Stack shall support version control of key objects kept in the Key Storage RS_CRYPTO_02116
|
Description A key slot shall allow to define a source of keys and switch on the version control mechanism for this key slot content. The Crypto Stack shall allow saving of a new key object into a key slot with enabled version control, only if the key version will be increased and the source is matching. The version control mechanism must keep the version of the last key saved in the slot even after erasing of the key value. Rationale The basic version control logic must be implemented by the Crypto Stack to enable rollback protection in a transparent way for applications. |
Requirement: The Crypto Stack shall provide interfaces to use symmetric encryption and decryption primitives RS_CRYPTO_02201
|
Description The Crypto Stack shall support encrypting and decrypting data using an algorithm for symmetric encryption/decryption primitives. Rationale Encrypted data |
Requirement: The Crypto Stack shall provide interfaces to use asymmetric encryption and decryption primitives RS_CRYPTO_02202
|
Description The Crypto Stack shall support encrypting and decrypting data using an asymmetric algorithm. Rationale While encryption/decryption of bulk data (long messages) should be done using symmetric-key algorithms for efficiency reasons, the Crypto Stack supports also asymmetric encryption/decryption primitives required by special use cases that apply asymmetric encryption/deception on messages of short length and to facilitate implementing standards that include hybrid encryption/decryption schemes. |
Requirement: The Crypto Stack shall provide interfaces to use asymmetric encryption and decryption primitives RS_CRYPTO_02203
|
Description The Crypto Stack shall support creating and verifying message authentication codes (MAC). Rationale SecOC using MACs to authenticate messages |
Requirement: The Crypto Stack shall provide interfaces to use digital signature primitives RS_CRYPTO_02204
|
Description The Crypto Stack shall support creating and verifying digital signatures Rationale Digitally signed updates |
Description The Crypto Stack shall support creating and verifying cryptographic hashes. Rationale Signature verification |
Requirement: The Crypto Stack shall provide interfaces to configure and use random number generation RS_CRYPTO_02206
|
Description The Crypto Stack shall support generating cryptographically strong random numbers. Rationale Random numbers are required to generate cryptographic keys, nonces and other inputs to cryptographic protocols. Use Case Once configured, random number generator is used by different primitives. |
Requirement: The Crypto Stack shall provide interfaces to use authenticated symmetric encryption and decryption primitives RS_CRYPTO_02207
|
Description The Crypto Stack shall support encrypting and decrypting data using an algorithm for authenticated symmetric encryption/decryption primitives. Rationale Authenticated encrypted data |
Requirement: The Crypto Stack shall provide interfaces to use symmetric key wrapping primitives RS_CRYPTO_02208
|
Description The Crypto Stack shall support symmetric authenticated encrypting/decrypting or wrapping/unwrapping of key values unavailable for applications in a plain form. Rationale Secure keys transportation. Use Case Export/Import of key material. |
Requirement: The Crypto Stack shall provide interfaces to use asymmetric key encapsulation primitives RS_CRYPTO_02209
|
Description The Crypto Stack shall support asymmetric key encapsulation mechanism for secure transportation of key values Rationale Secure keys transportation. Use Case Export/Import of key material. |
Requirement: The Crypto Stack API shall provide a standardized header files structure RS_CRYPTO_02301
|
Description The application shall use standardized header files to abstract from the underlying implementation and platform. Rationale The applications code shall be reusable across different implementations of the AUTOSAR Adaptive platform. |
Description Some primitives are generally used to process large amounts of data. This data may be streamed into the Crypto Stack in multiple smaller pieces. Rationale Basic functionality |
Description The Crypto Stack interfaces providing cryptographic transformations should be logically separated from interfaces providing access control to key slots of the permanent Key Storage. Rationale The key access functionality supposes interaction with the IAM framework, but the cryptography implementation independent from this. Therefore separation of these two functional sub-domains simplifies implementation, support and extending of the whole Crypto Stack. Each of these sub-domains can be upgraded independently from another one. |
Requirement: The Crypto Stack shall support integration with a Public Key Infrastructure (PKI) RS_CRYPTO_02306
|
Description The Crypto Stack shall support integration with a Public Key Infrastructure (PKI). For this reason it shall provide interfaces for at least: certificate parsing and verification, validation of certificate chains, creation of Certificate Signing Requests (CSR), storing and updating Certificate Revocation Lists (CRL) and Delta CRLs for following usage by the stack, certificate validation via the Online Certificate Status Protocol (OCSP), ordering and transmission of certificates in certificate chains (full or partial), updating a defined set of root certificates. Rationale PKI is a widely used modern mean to facilitate the secure electronic transfer of information between untrusted parties for a range of network activities. |
Requirement: The Crypto Stack design shall separate cryptographic API from the PKI API RS_CRYPTO_02307
|
Description The Crypto Stack interfaces providing cryptographic transformations should be logically separated from interfaces providing PKI related functionality. Rationale Main responsibility of the PKI functional domain is parsing and production of data structures in specific formats. Functionally, the PKI is a “consumer” of a cryptography implementation, and main functionality of the client-side PKI uses key-less or public key cryptographic transformations, i.e. it doesn’t need utilization of isolated private/secret contexts. Each of these sub-domains can be upgraded independently from another one. |
Requirement: The Crypto Stack shall support a unified cryptographic primitives naming convention, common for all suppliers RS_CRYPTO_02308
|
Description The Crypto Stack should provide interfaces for mapping of unified (Crypto Stack supplier independent) cryptographic primitives’ names to some supplier specific ones. Rationale Introduction of the unified naming convention allows to enable development of portable application source code. |
Requirement: The Crypto Stack API shall support the run-time configurable usage style RS_CRYPTO_02309
|
Description A consumer application should have a possibility to select concrete cryptographic primitives and find out all their properties at run-time. Rationale In some use cases an application may not know in advance which concrete primitive it will use for data processing. For example this information can stay available after some “handshake” protocol execution only. Also the possibility to observe properties of currently used object or context is very useful for the application debugging. |
Requirement: The Crypto Stack should support a joint usage of multiple back-end cryptography providers including ones with non-extractable keys RS_CRYPTO_02401
|
Description The Crypto Stack interfaces should support simultaneous cooperative usage of multiple software or hardware based cryptography implementations, which can implement the concept of non-extractable keys (HSMs/TPMs). Rationale Single ECU can have a few different HSMs/TPMs and additional software implementation of cryptography for usage in different application domains. |
Description In a multi-tenant scenario the Crypto Stack shall implement an individual logical view of available session keys and active operations for each tenant. Rationale A application using the Crypto Stack should not be able to observe or manipulate the list of active keys and crypto operations of another application (error injection, timing side-channels, etc.). |
Requirement: The Crypto Stack shall support the key slots identification in a way independent from a concrete deployment RS_CRYPTO_02405
|
Description The Crypto Stack shall support some type of unique logical key slot identifiers definable by application designers/developers. Rationale Application needs some simple identification mechanism of logical key slots that is independent from the deployment results, so that these slots identifiers can be directly defined in the executable code. |
Non-Functional Requirements
Requirement: The Crypto Stack API shall support an efficient mechanism of error states notification RS_CRYPTO_02310
|
Description The Crypto Stack should deliver comprehensive information about an error state what was detected. This information should be enough to recognize the error conditions and make decision how to recover from the error state and continue execution. The delivering mechanism should be convenient for applications’ developers and satisfy the Autosar AP C++14 Coding Guidelines. Note: The error states are not expected to be seen in normal program execution. Rationale Basic functionality |

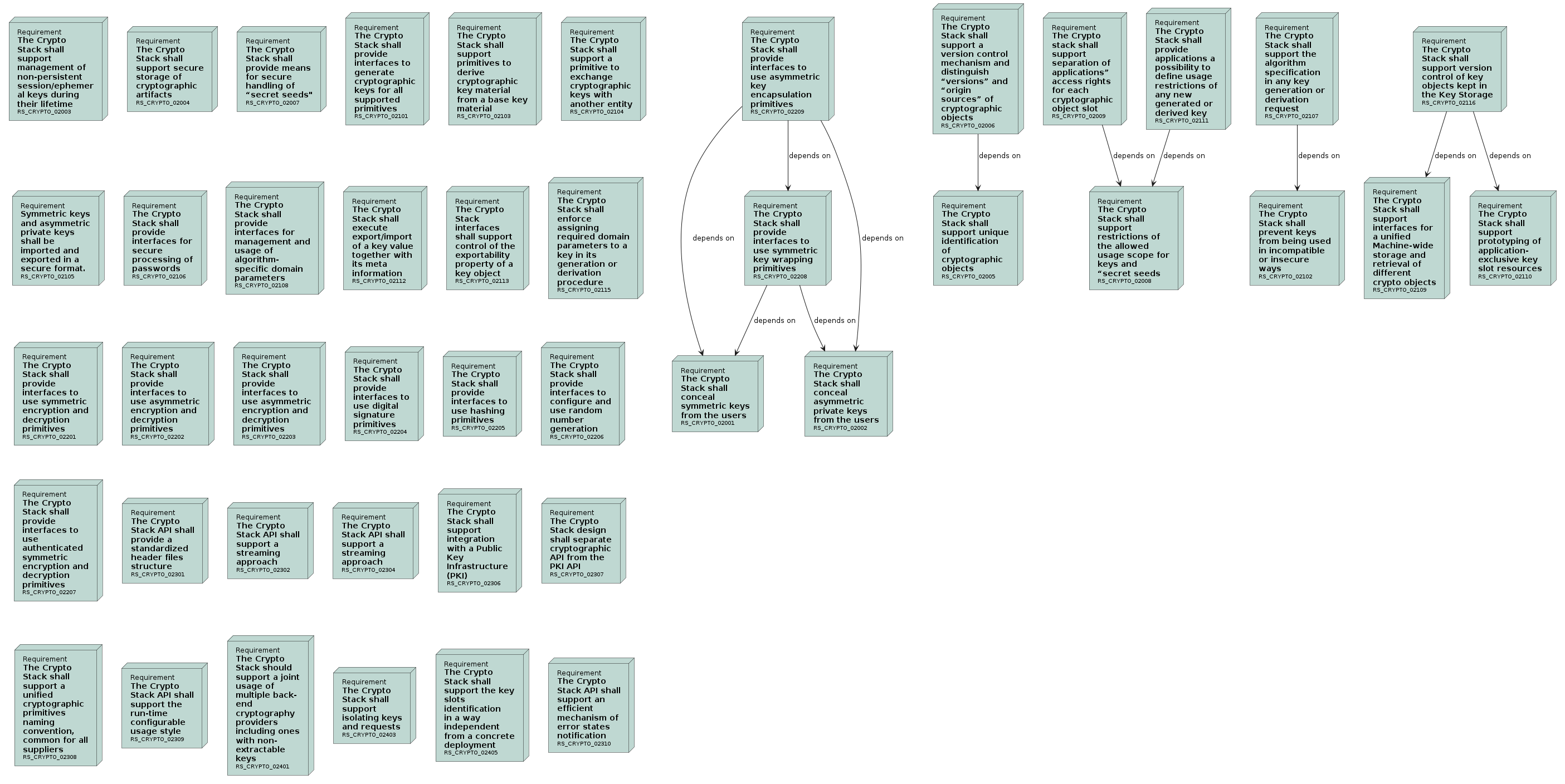

Traceability
ID |
Title |
Status |
Type |
Outgoing |
Tags |
|---|---|---|---|---|---|
The Crypto Stack shall conceal symmetric keys from the users |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall conceal asymmetric private keys from the users |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support management of non-persistent session/ephemeral keys during their lifetime |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support secure storage of cryptographic artifacts |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support unique identification of cryptographic objects |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support a version control mechanism and distinguish “versions” and “origin sources” of cryptographic objects |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide means for secure handling of “secret seeds" |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support restrictions of the allowed usage scope for keys and “secret seeds |
req |
autosar; autosar_crypto |
|||
The Crypto stack shall support separation of applications” access rights for each cryptographic object slot |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide interfaces to generate cryptographic keys for all supported primitives |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall prevent keys from being used in incompatible or insecure ways |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support primitives to derive cryptographic key material from a base key material |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support a primitive to exchange cryptographic keys with another entity |
req |
autosar; autosar_crypto |
|||
Symmetric keys and asymmetric private keys shall be imported and exported in a secure format. |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide interfaces for secure processing of passwords |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support the algorithm specification in any key generation or derivation request |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide interfaces for management and usage of algorithm-specific domain parameters |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support interfaces for a unified Machine-wide storage and retrieval of different crypto objects |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support prototyping of application-exclusive key slot resources |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide applications a possibility to define usage restrictions of any new generated or derived key |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall execute export/import of a key value together with its meta information |
req |
autosar; autosar_crypto |
|||
The Crypto Stack interfaces shall support control of the exportability property of a key object |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall enforce assigning required domain parameters to a key in its generation or derivation procedure |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support version control of key objects kept in the Key Storage |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide interfaces to use symmetric encryption and decryption primitives |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide interfaces to use asymmetric encryption and decryption primitives |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide interfaces to use asymmetric encryption and decryption primitives |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide interfaces to use digital signature primitives |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide interfaces to use hashing primitives |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide interfaces to configure and use random number generation |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide interfaces to use authenticated symmetric encryption and decryption primitives |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide interfaces to use symmetric key wrapping primitives |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall provide interfaces to use asymmetric key encapsulation primitives |
req |
autosar; autosar_crypto |
|||
The Crypto Stack API shall provide a standardized header files structure |
req |
autosar; autosar_crypto |
|||
The Crypto Stack API shall support a streaming approach |
req |
autosar; autosar_crypto |
|||
The Crypto Stack API shall support a streaming approach |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support integration with a Public Key Infrastructure (PKI) |
req |
autosar; autosar_crypto |
|||
The Crypto Stack design shall separate cryptographic API from the PKI API |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support a unified cryptographic primitives naming convention, common for all suppliers |
req |
autosar; autosar_crypto |
|||
The Crypto Stack API shall support the run-time configurable usage style |
req |
autosar; autosar_crypto |
|||
The Crypto Stack API shall support an efficient mechanism of error states notification |
req |
autosar; autosar_crypto |
|||
The Crypto Stack should support a joint usage of multiple back-end cryptography providers including ones with non-extractable keys |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support isolating keys and requests |
req |
autosar; autosar_crypto |
|||
The Crypto Stack shall support the key slots identification in a way independent from a concrete deployment |
req |
autosar; autosar_crypto |
